Fairchild High Flow Pressure Regulator, Model 100
Images are representations only.

100308N

Series: Model 100 High Flow Pressure Regulator Brand: Fairchild Industrial Products - by Rotork

FAIRCHILD Model 100 High Flow Pressure Regulator, 0.5-30 psig, 3.5-200 kPa, 1" NPT, Non-Relieving

Price
$408.45 USD
Stock
50+ In Stock
Request Information

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Pipe Size: 1" NPT
  • Materials of Construction:
    • Body: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N
  • Options:  Non-Relieving

Specifications

Brand

Actuator Type

  • Tamper-Proof

Adjustment Type

  • Knob

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

Diaphragm Material

  • Buna-N

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 44 scfm (75 m³/hour) for Downstream Pressure 5 psig (0.35 bar, 35 kPa) Above 20 psig Set Pressure

Exhaust Port

  • Tapped Exhaust

Flow Capacity

  • 1500 scfm (2550 m³/hour) 100 psig (7 bar, 700 kPa) Supply, 1-1/2" NPT Connector 40 psig

Media

  • Compressed Air
  • Gas

NPT Connection

  • 1" NPT Female
  • 1-1/2" NPT Female

Pressure Range

  • bar: 0 to 0.7
  • bar: 0.035 to 2
  • bar: 0.07 to 4
  • bar: 0.14 to 10
  • bar: 0.14 to 7
  • kPa: 0 to 70
  • kPa: 14 to 1,000
  • kPa: 14 to 700
  • kPa: 3.5 to 200
  • kPa: 7 to 400
  • psi: 0.5 to 30
  • psig: 1 to 60
  • psig: 2 to 100
  • psig: 2 to 150

Relief

  • Non-Relieving

Sensitivity

  • 1/2" WC (1.27 cm)

Supply Pressure - Maximum

  • bar: 00 to 17.24
  • kPa: 1,034 to 1,724
  • psig: 250

Supply Pressure Effect

  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Zinc-Plated Steel

Documentation

Data Sheets

Product Manuals

Catalogs

Certifications & Approvals

View Product Series

Similar SKUs

10233C
10233C
Model 10 Pneumatic Pressure Regulator
Fairchild Industrial Products - by Rotork
$408.45 USD
50+ In Stock
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 3/8" NPT, Check Valve

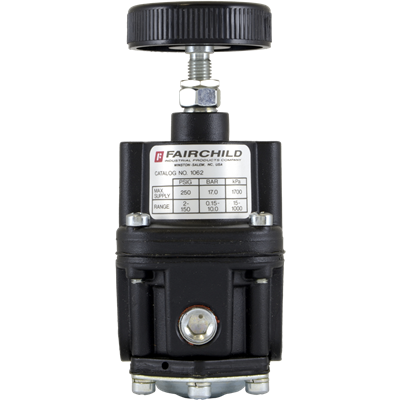

1032
