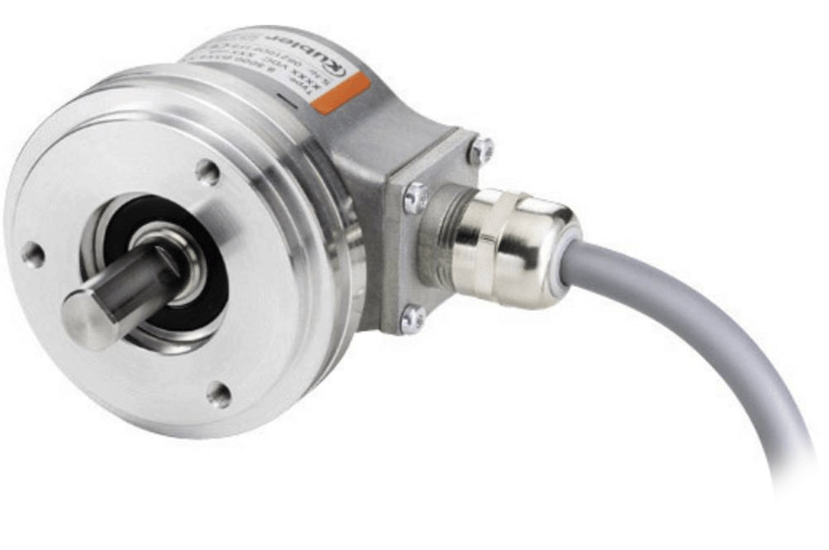

5000 (Shaft) Incremental Encoder

Brand: Turck, Inc.

Due to their sturdy bearing construction in Safety-Lock Design, the Sendix 5000 offer high resistance against vibration and installation errors. The rugged housing, high protection level of up to IP67, as well as the wide temperature range of -40° to 85° C (-40° to 185° F), make this product range the perfect encoder for all applications.

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC Guideline 2014/30/EC
  • Ex 2 & 22
  • RoHS Guideline 2011/65/EU
  • UL (C,US): File 224618

Cable Length

  • 98.43 feet (30 meters), Maximum
  • PVC Cable: 0.3 to 65.62 feet (0.09 to 20 meters)

Cable Material

  • PVC

Capacity

  • Shaft Load Capacity (Axial): 50 N
  • Shaft Load Capacity (Radial): 100 N

Circuit Protection

  • Short Circuit Proof Outputs Protected

Consumption

  • Power Consumption (No Load): 100 mA - Open Collector
  • Power Consumption (No Load): Typically 40 mA (90 mA - Maximum)
  • Power Consumption (No Load): Typically 50 mA (100 mA - Maximum)

Diameter

  • Flange: 2 to 4.53" (50.8 to 115 mm)

Electrical Connectors

  • M12 Male Connector (5-Pin, 8-Pin)
  • M23 Male Connector (12-Pin)
  • MIL Male Connector (6-Pin, 7-Pin, 10-Pin)
  • Sub-D Male Connector, 9-Pin

Environmental Protection

  • with Shaft Seal: IP66
  • with Shaft Seal: IP67
  • without Shaft Seal: IP65

Frequency

  • Pulse: 300 kHz, Maximum

Load

  • Permissible Load / Channel: ± 20 mA Sink at 30 Vdc - Open Collector
  • Permissible Load / Channel: ± 20 mA - Maximum

Measuring Time

  • Rising & Falling Edge Time: Maximum

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Power Supply

  • 10-30 Vdc - Push-Pull
  • 5 Vdc ± 5% - RS422
  • 5-30 Vdc - RS422, Push-Pull (7272 Compatible), Push-Pull (7272 Compatible, without Capacitor), Open Collector

Pulse Range

  • 1 to 5,000 Pulses/Revolution

Reverse Polarity Protection

  • Reverse Polarity Protection of the Power Supply: No - RS422 (5 Vdc ± 5%), Push-Pull (7272 Compatible), Push-Pull (7272 Compatible, without Capacitor), Open Collector
  • Reverse Polarity Protection of the Power Supply: Yes - RS422 (5-30 Vdc), Push-Pull

Shaft Material

  • Stainless Steel

Shock

  • Shock Resistance: 3,000 m/sec², 6 milliseconds (According to EN 60068-2-27)

Torque

  • Starting Torque (IP65): < 0.01 Nm at 20° C (68° F)
  • Starting Torque (IP66/IP67): < 0.05 Nm at 20° C (68° F)

Vibration

  • Vibration Resistance: 300 m/sec², 10 to 2,000 Hz (According to EN 60068-2-6)
