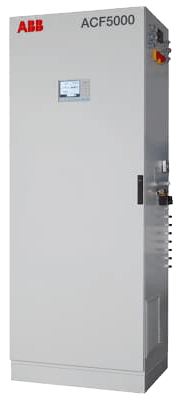

ACF5000 Multi-Component FTIR Emission Monitoring System

Brand: ABB Group
Request Information
Favorite
Does not ship to OH, United States

ABB’s new ACF5000 is the specialist for emission and process monitoring from the pioneers in FTIR CEMS. It is available in the 4th generation. Since introduction in 1993, ABB has sold more than 2000 units. The standard system design combines the advantages of a FTIR spectrometer, flame ionization (FID) technology and oxygen measurement. The high resolution FTIR spectrometer provides selective measurement of infrared active gas molecules with high sensitivity and stability. It simultaneously measures up to 15 components including all relevant pollutants.
Features
  • Simultaneous measurement of up to 15 gas components
  • Proven hot/wet extractive measurement
  • Powerful FTIR technology for TOC
  • Complete system with a compact and modular design
    • Internal references − allow on-going system validation
    • Lowest detection limits − suitable to monitor smallest emission limit values
  • One single sample inlet for all sample gases with a unique air-driven aspirator pump
  • Low cost of ownership
  • Communication, control and maintenance via PROFIBUS, Modbus, TCP and Ethernet (OPC)

Specifications

Brand

Measured Components

  • H2O, CO2, CO, NO, NO2, N2O, SO2, NH3, HCl, HF, CH4, CH2O, VOC, O2

Environmental Protection

  • IP54

Cross-Sensitivity

  • < ±4% of measuring range

Linearity

  • < ±2% of measuring range

Sensitivity Drift

  • < ±3% in maintenance interval

Response Time

  • T90 < 200 seconds, T90 < 400 seconds for HCl, NH3 and HF

Limit of Detection (2σ)

  • ≤ 2% of measuring range

Input Voltage

  • 100/200 V 3 Ph, N, PE (optional, with transformer), ±10%, 48-62 Hz
  • 120/208 V 3 Ph, N, PE
  • 230/400 V 3 Ph, N, PE

Sample Temperature

  • 180 ± 2° C (356 ± 3.6° F)

Pressure

  • Sample: 900 to 1,100 hPa (0.9 to 1.1 bar, 13 to 16 psi)

Flow Rate

  • Approx. 300 l/h (0.18 cfm)

Storage / Transport Temperature

  • -25° to 65° C (-13° to 149° F)

Operating Temperature

  • With air conditioning unit (option): 5° to 45° C (41° to 113° F)
  • Without air conditioning unit: 5° to 30° C (41° to 86° F)

Humidity

  • Max. 75% as an annual average
  • Max. 95% for short periods

Weight

  • Approx. 300 kg (660 lb)
