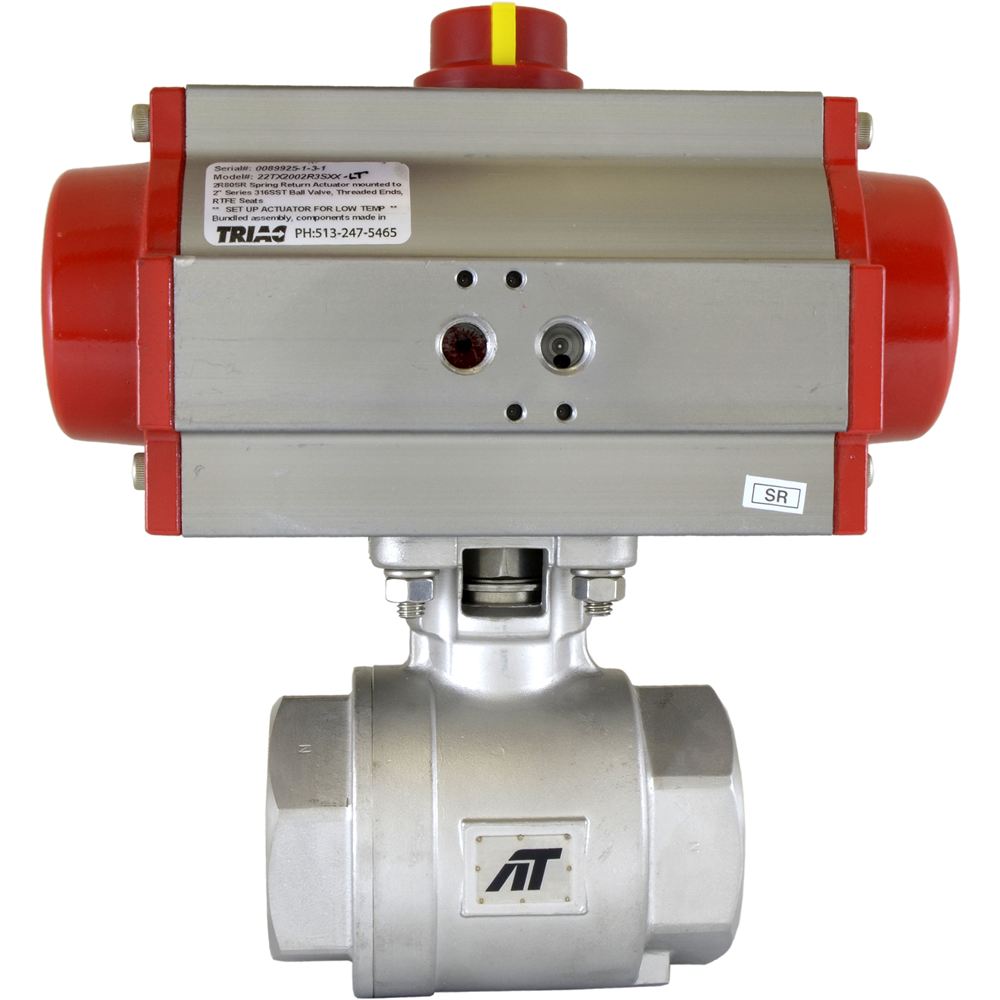

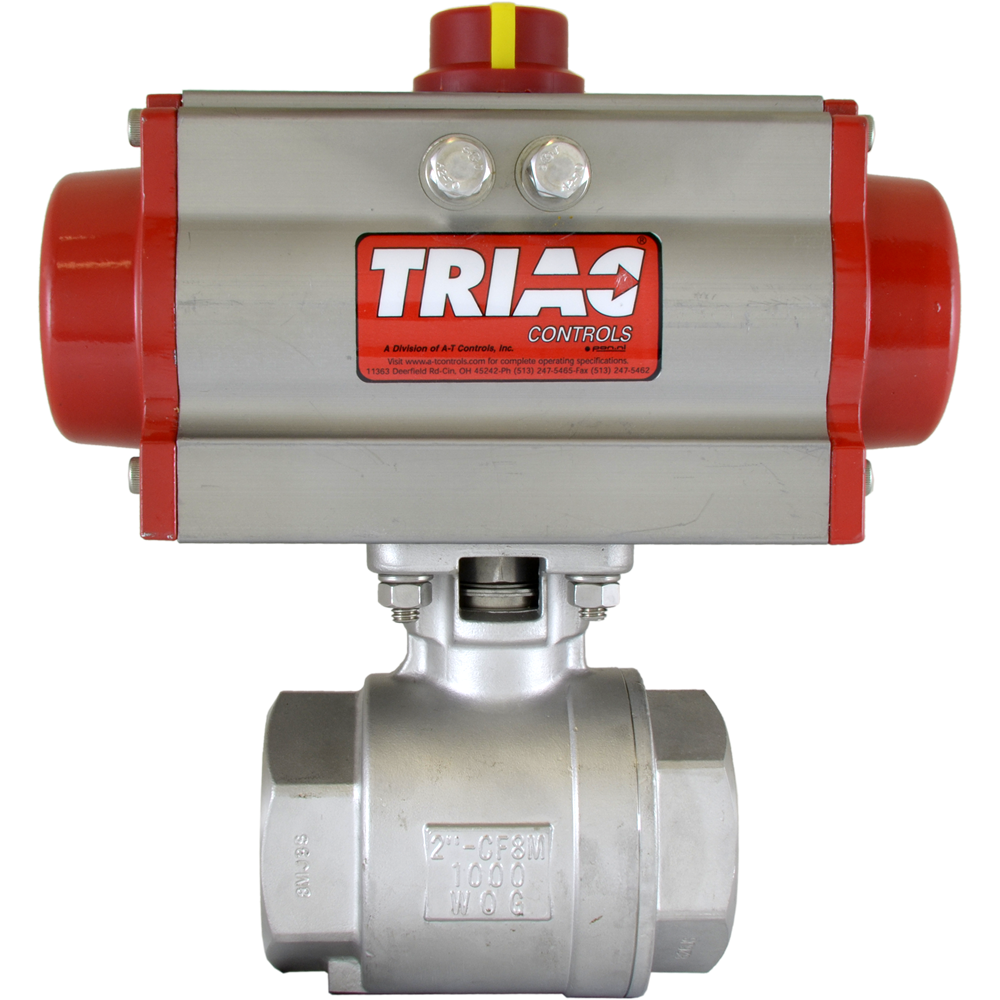

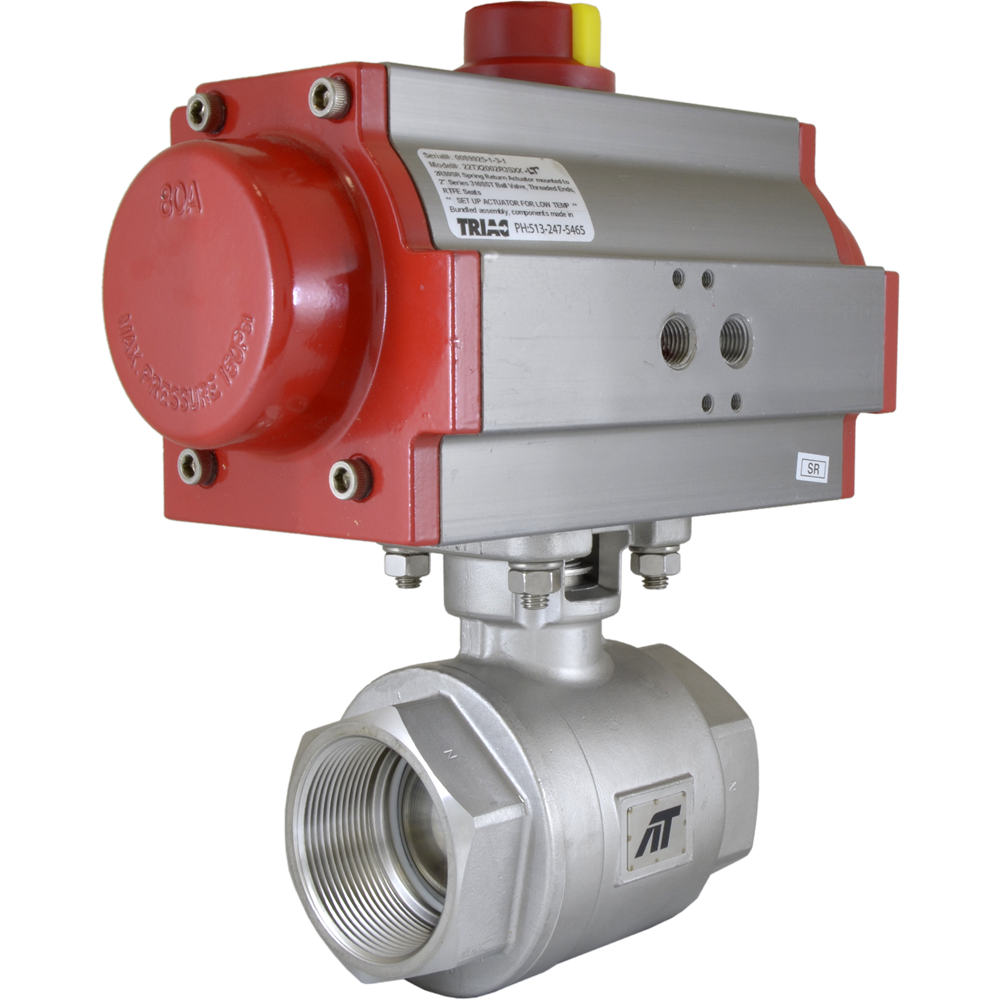

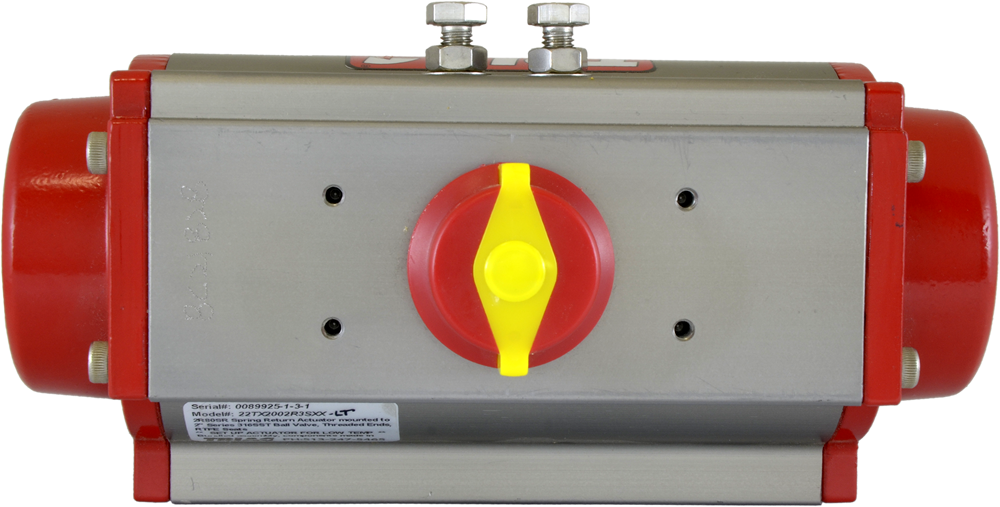

A-T Controls Automated Ball Valve, 22 Series
Images are representations only.

22-TX-050/TR1S-LT

Series: 22 Series Automated Ball Valve Brand: A-T Controls, Inc.

A-T CONTROLS Series 22 Ball Valve, 2-Way Ball Valve, SST, Threaded, 1/2", Electric Actuator, RTFE, Low Temperature

Price
$398.38 USD
Stock
25+ In Stock
Request Information

A-T Controls Automated Ball Valve, 22 Series A-T Controls Automated Ball Valve, 22 Series A-T Controls Automated Ball Valve, 22 Series
  • Design: 2-Piece" High Performance Direct Mount
  • Size: 1/2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Available Seats: Reinforced TFE Seats
  • End Connections: Threaded Ends
  • Maximum Pressure Rating: 1000 psi
  • Actuator-Pneumatic : TR20 Spring Return
  • Options: Low Temperature





Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Full

Pressure Rating

  • psig: 800 to 1,000

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • RTFE (Reinforced Teflon)

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated
