A-T Controls Automated Ball Valve, 33 Series
Images are representations only.

33-F1-200/2R6S-XX-T

Series: 33 Series Automated Ball Valve Brand: A-T Controls, Inc.

A-T CONTROLS Series 33 Automated Ball Valve, 3-Way Full Port, 316 SST, 2" x 150# Flange, RTFE, 2R300SR Pneumatic Actuator, Spring Return, T-Port

Price
$510.31 USD
Stock
25+ In Stock
Request Information

  • 33: 3-Way, Full Port
    • Stainless Steel Body and trim
  • F: 150# Flanged Ends
  • 1: Valve Series Standard
  • 200: 2" Valve Size
  • 2R6S: 2R300 SR
    • Design: Triac Rack & Pinion Actuator with Double Travel Stops
    • Pneumatic Actuator: Spring Return Fail Clockwise Configuration
    • Torque: 3000 In-Lbs.
    • Number of Springs: 5 Per Side
    • Mounting: ISO, DIN Configuration
    • Seals: Buna
  • XX: No Specials
  • T: T-Port 3-Way arrangement

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • 316 Stainless Steel
  • WCB Carbon Steel

Flange Size - 1-1/2" (DN40)

  • 1-1/2" (DN40) - 150#

Flange Size - 1" (DN25)

  • 1" (DN25) - 150#

Flange Size - 1/2" (DN15)

  • 1/2" (DN15) - 150#

Flange Size - 2-1/2" (DN65)

  • 2-1/2" (DN65) - 150#

Flange Size - 2" (DN50)

  • 2" (DN50) - 150#

Flange Size - 3" (DN80)

  • 3" (DN80) - 150#

Flange Size - 3/4" (DN20)

  • 3/4" (DN20) - 150#

Flange Size - 4" (DN100)

  • 4" (DN100) - 150#

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female
  • 4" NPT Female

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • L, T, LL, I, X, TT-Ports
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Full

Pressure Rating

  • psi: 1,000
  • psi: 300
  • psi: 600
  • psi: 800

Pyramidal Stem Packing

  • Yes

Seat / Seal Material

  • 50% Stainless Steel Powder / 50% Carbon Filled Teflon
  • PTFE (Carbon Filled Teflon)
  • RTFE (Reinforced Teflon)

TA-Luft Certified

  • Yes

Tri-Clamp Connection

  • 1" Sanitary Clamp
  • 1/2" Sanitary Clamp
  • 1-1/2" Sanitary Clamp
  • 2" Sanitary Clamp
  • 2-1/2" Sanitary Clamp
  • 3" Sanitary Clamp
  • 3/4" Sanitary Clamp
  • 4" Sanitary Clamp

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End
  • 2" Butt Weld End
  • 2" Socket Weld End
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End
  • 3" Butt Weld End
  • 3" Socket Weld End
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End
  • 4" Butt Weld End
  • 4" Socket Weld End

Documentation

Data Sheets

Product Manuals

View Product Series

Similar SKUs

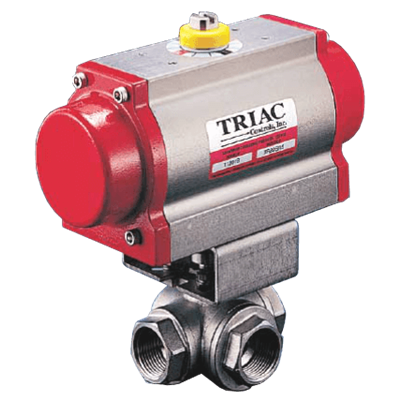

38-TX-200/2R6S-XXT
